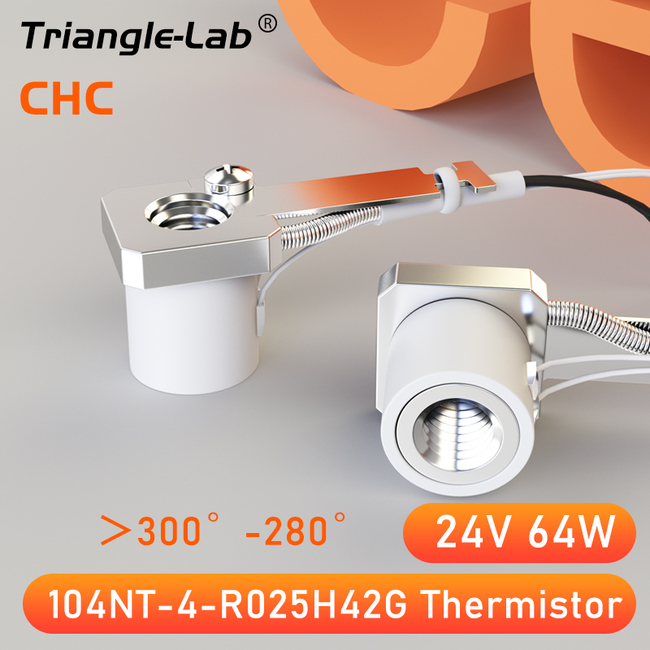

CHC 24V keramični grelni blok za V6 hotend, TriangleLab

If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.
The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.




Announcement
The ceramic heating core is officially named CHC series.
It will be used as the core to make a variety of HOTEND assemblies.
Currently available for purchase are V6 specifications, HEMERA specifications, CR10 specifications.
New models will be added after March. That is the ultimate perfect CHC HOTEND. Stay tuned.
Ceramic heating core calendar represents:
1: The first generation of products (2015~2017)
2: Second-generation products (2019~2021)
3: The third generation of new products (2022)
Note

As of 6 June 2022 this 12V product has been upgraded and does not require a step-down board, so you can use it with confidence.We have demonstrated various combinations of ceramic heating blocks, if you want to buy or learn more, you can click on the picture to purchase.


▉Name:
Trianglelab Ceramic Heating Core KIT
Technical details:Please click here!
▉FAQs about CHC/CHC pro:
Please click here!
▉Compatible:
V5/V6 Hotend
CR10 Hotend
Hemera Htend
Matrix Extruder
Tatan AERO
DDB-V6Hotend KIT

*Built-in 104NT-4-R025H42G Thermal
Marlin Firmware Configuration
* 5:100K thermistor - ATC Semitec 104GT-2/104NT-4-R025H42G(Used in ParCan & J-Head) (4.7k pullup)
#define TEMP_SENSOR_0 5
Repetier
ATC Semitec 104GT-2
Klipper
sensor_type: ATC Semitec 104NT-4-R025H42G



Supports temperatures up to 300℃
ID09L08-60W ceramic heater power test
Roomtemperature 24℃
Controller BoardMKS BASE V1.4
Resistance at room temperature  9~10Ω    24V 57.6~64W
Resistance at room temperature  3~4Ω    12V 36~48W
Controller Boardpowervoltage24V DC
Firmware marlin2.0
No Firmwareheater power limiting
Read the temperature from the LCD
Record the power consumption onthe Lab PSU while passing certain temperatures




Please note that the temperatures in the table are thermistor embedded in the melting zone not the actual temperatures of the heating element especially at low temperatures.
The power in the table above has been deducted from the consumption of the controller board and LCD 1.03W.
▉Features:
Cylindrical ceramic heaters can be optimized and symmetrically heated materials
The thermistor is directly installed in the BLOCK to obtain a more realistic temperature reading when the material comes out of the hot end
Lightweight design, suitable for fast printing
Small compression size
Compatible with any V5/V6/CR10/HEMERA/MATRIX radiator, up to 300℃ degrees Celsius






▉What's in the box:
Set2:Ceramic Heating Core 24V (Nozzle not included)
